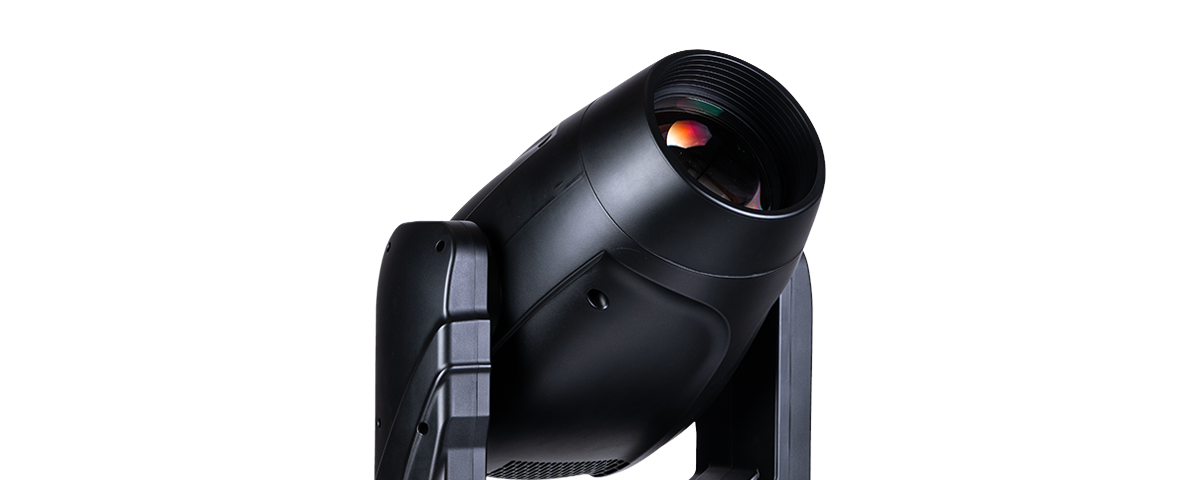

Twist Beam 2R

Learn about the amazing Twist Beam 2R, which utilizes the potent Osram 2R Sirius HRI 132W discharge lamp. This fixture offers exceptional brightness with a luminous flux of 6200 lumens and a light life of 6,000 hours. With remote on/off functionality through DMX, you can easily control your lighting. You can also enjoy precise movement with a 2° beam angle, 360°/540° pan, and 265° tilt capabilities.

Utilize dramatic gobo effects and 14+ color selections to discover a world of vivid hues. This lamp offers countless options thanks to its 8-facet spinning effect wheel, motorized focus, dimming, and strobe features.

Compact and lightweight, the Twist Beam 2R is a versatile lighting solution for any event or production.

Highly efficient glass optics

Long life 132 Watt Osram lamp

Ultra fast movements

Twist Beam 2R Specs

Source

  • Light Source: Osram 2R Sirius HRI 132 W discharge lamp
  • Lamp life: 6.000 hours
  • Luminous Flux: 6200 lumen, 354200 lux @5M
  • Control: remote on/off via DMX
  • Ballast: switching mode power supply

Optical System

  • Beam angle: 2°

X/Y

  • Pan: 360° (2.8 sec) or 540°(2 sec)
  • Tilt: 265° (1.8 sec)
  • 16-bit resolution
  • Auto repositioning
  • 3-Phase motor for fast and quiet movement

Colors

  • 14+open, interchangeable, indexable and bidirectional rainbow effect
  • Color bounce

Gobos

  • Outside 13.8 mm, Inside 6 mm
  • 17+ open static gobos
  • Real indexable and gobo shaking
  • Distinctive gobo animation effect

Rigging

  • Mounting Points: 2 ¼-Turn Locks
  • 1 X Omega Brackets With ¼-Turn Quick Locks
  • Safety Rope

Features

  • DMX channels: 10/12/13/16
  • Color wheel: 14+1 colors
  • Static gobo wheel: 17+1 gobos
  • Motorized focus
  • Full range 0-100% dimmer
  • Various strobe
  • 8 Facets rotating effect wheel
  • RDM function to change DMX address, flip display, reverse X/Y, temperature control
  • RDM reads the voltage, current, power consumption of the lamp
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base, arm and lamp
  • Fan speed auto change according to temperature

Display

  • 2.4 inch LCD display with English/Chinese/French/Spanish menu
  • Auto lock
  • Flip
  • Back-up communicating IC

Power

  • Max Power Consumption: 250W
  • Powercon In And Out
  • Power Supply: Electronic Auto-Ranging
  • Input Voltage Range: 100–240V, 50-60Hz

Dimension and Weight

  • Fixture: 300X188X435MM
  • Packing: 510X370X260MM
  • Net Weight: 10KG
  • Gross Weight: 12KG
