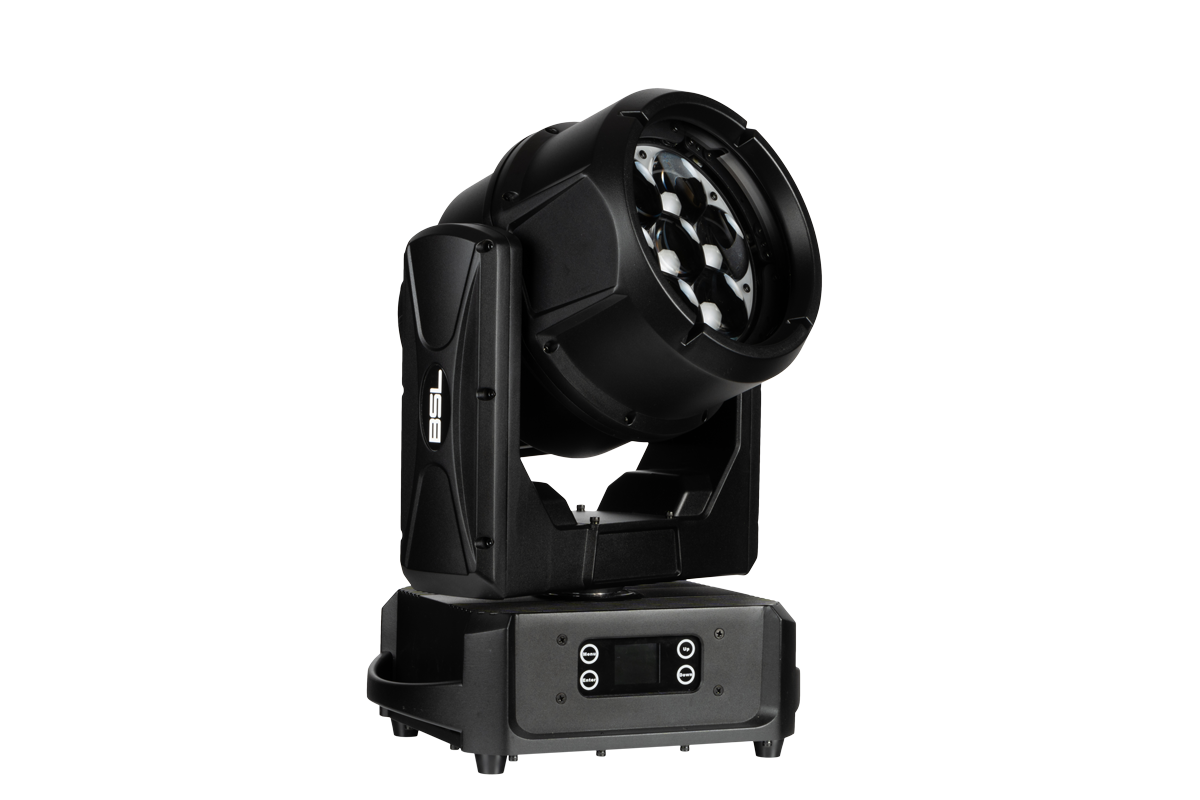

Helius

Unleash the power of the Helius to create vibrant effects that will change your surroundings. With its 7 times 60 watt RGBL LEDs and 28 0.5 watt RGB LEDs, the Helius delivers a stunning 9200 lumens, ensuring a vivid and immersive display.

Take control of your lighting experience with Helius’ extensive features. From the motorized zoom with a range of 3.5⁰ to 45⁰ to the variable color temperature settings and RGBL color mixing options, the possibilities are endless. With 16-bit dimming and pixel control, you can fine-tune your lighting compositions to perfection.

Built with durability in mind, the Helius is IP65-rated, making it suitable for both indoor and outdoor use. Its compact design and lightweight construction allow for easy portability and installation.

Specifications

Pixel controlled back light

rotatable front lens

7*60 watt rgbl led

Helius Specs

OPTICAL

  • Light Source: 7PCS 60 Watt RGBL LED’s
    &
    28PCS 0,5 Watt RGB LED’s
  • Average Lifetime: 50.000 Hours
  • Total Lumen Output: 9200
  • CRI: 82 (Variable CTO 2000-8000k)
  • 16-Bit Dimming

CONTROL

  • DMX Channels: 26/48/104/126
  • Wired Digital Communication Network

CONSTRUCTION

  • IP65

POWER

  • Max Power Consumption: 700 WatT
  • 5pin XLR DMX In/Out
  • RJ45 Ethernet In/Out (Art-Net, Sacn)
  • Locking Power Cable In
  • Voltage: AC 100-240v 50/60Hz
  • KwH (+/- 10%) 0.7

FEATURES

  • Zoom Range: 3,5⁰ – 45⁰
  • Motorized Zoom
  • Linear Color Temperature Presets (2700-800k)
  • RGBL Color Mixing
  • Pixel Control
  • RGB Sparkled Lens Effect
  • Electronic Strobe
  • Variable Dimming Curves
  • 360⁰ Continuous Pan And Tilt
  • DMX Adjustable Refresh Rate (900-25000hz)
  • RDM Support

DIMENSION AND WEIGHT

  • L: 309,5 MM (12.19 In)
  • W: 210 MM (8.27 In)
  • H: 463 MM (26.46 In)
  • Weight: 12 KG (26.46 Lbs)
