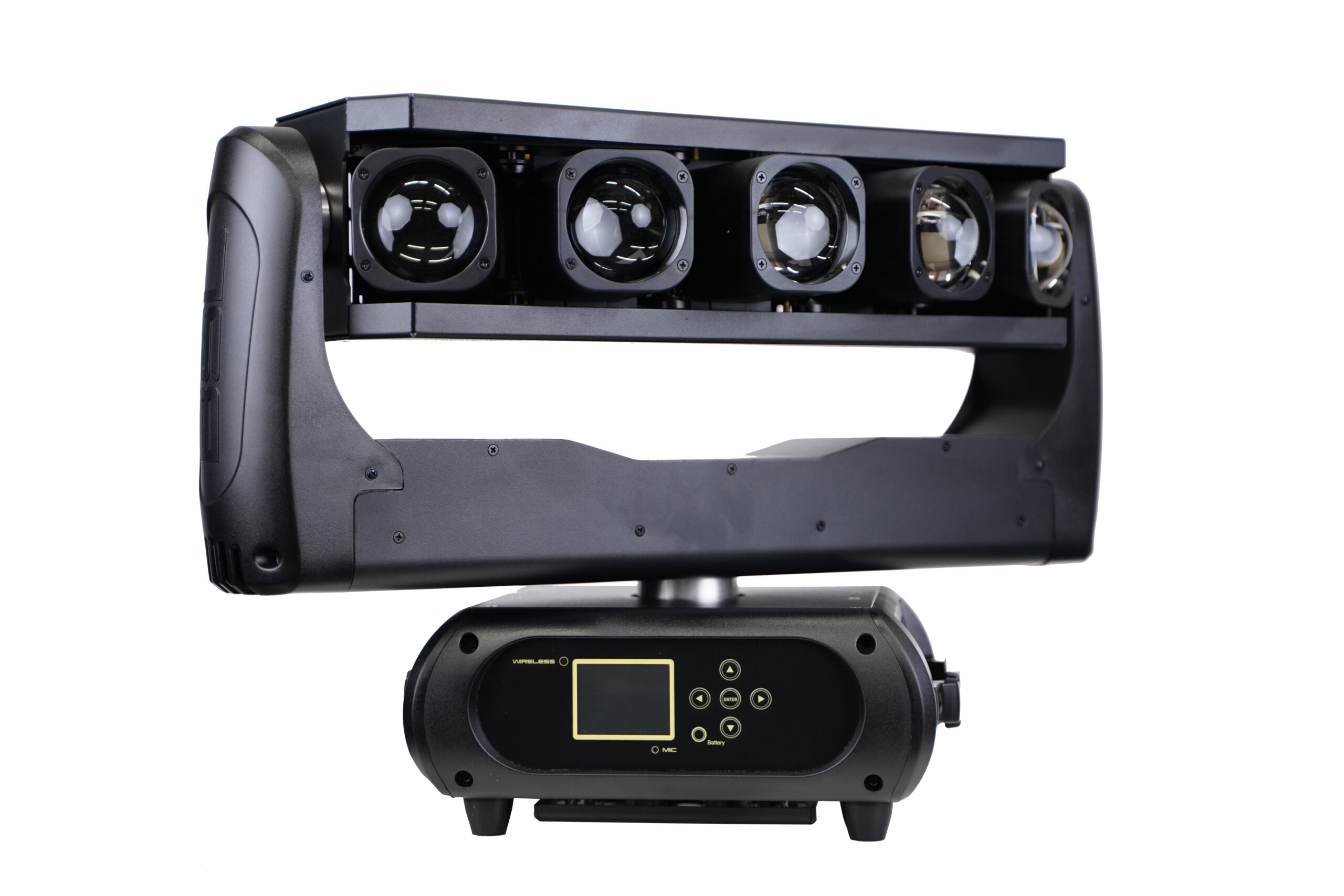

Pegasus Two

The Pegasus Two is a revolutionary effect in the world of moving heads. This beam moving head can adjust the beam angle between the individual LEDs. The Pegasus is equipped with 5 pieces of the 40 Watt RGBW Osram LED with professional optics. Its pan movement is endless, so you can get to every position in the blink of an eye.

Unique zoom effect

ENDLESS PAN & TILT

Pegasus Two Specs

Source

  • Light source: 5*40w Osram RGBW 4in1 leds
  • Lamp life: 60.000 hours
  • Control: Remote on/off via DMX
  • Ballast: switching mode power supply

Optical System

  • Beam angle: 2°

X/Y

  • Infinite pan rotation
  • Revolutionary design with motorized mutual beam angle
  • 16-bit resolution
  • Auto repositioning

Colors

  • Osram RGBW for changing and chase effect
  • Perfect color mixing

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 15/17/18/38
  • Full range 0-100% dimmer
  • Beautiful color chase effect for RGBW leds
  • Pixel control on every single color
  • Adjustable mutual beam angle
  • Various strobe
  • RDM function to change DMX address, flip display and reverse X/Y
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base, arm and lamp
  • Fan speed auto change according to temperature

Display

  • 2.4 inch LCD display with English/Chinese/French/Spanish menu
  • Auto lock
  • Flip
  • Back-up communicating IC

Power

  • Max power consumption: 200W
  • Powercon in and out
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240V, 50-60Hz
