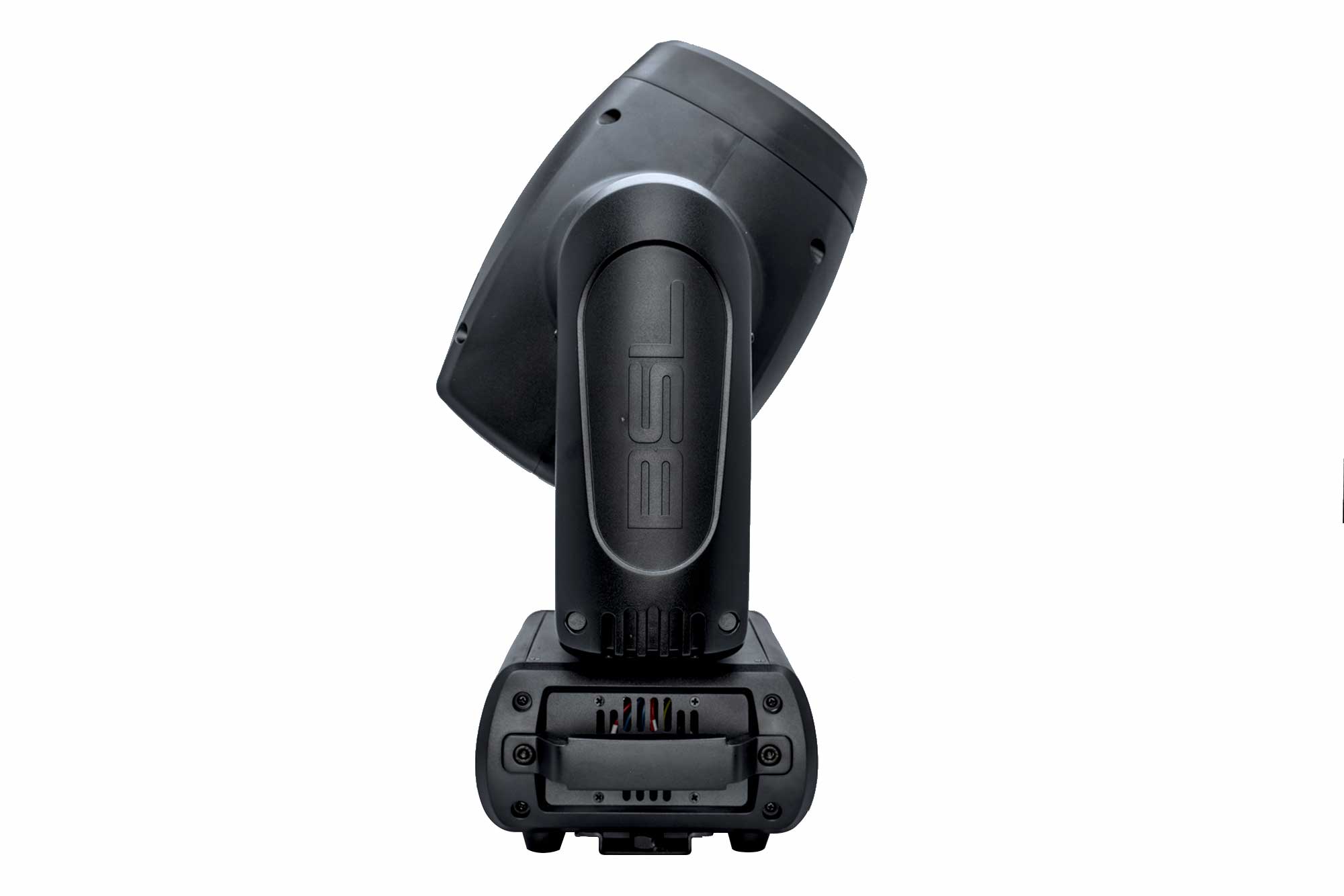

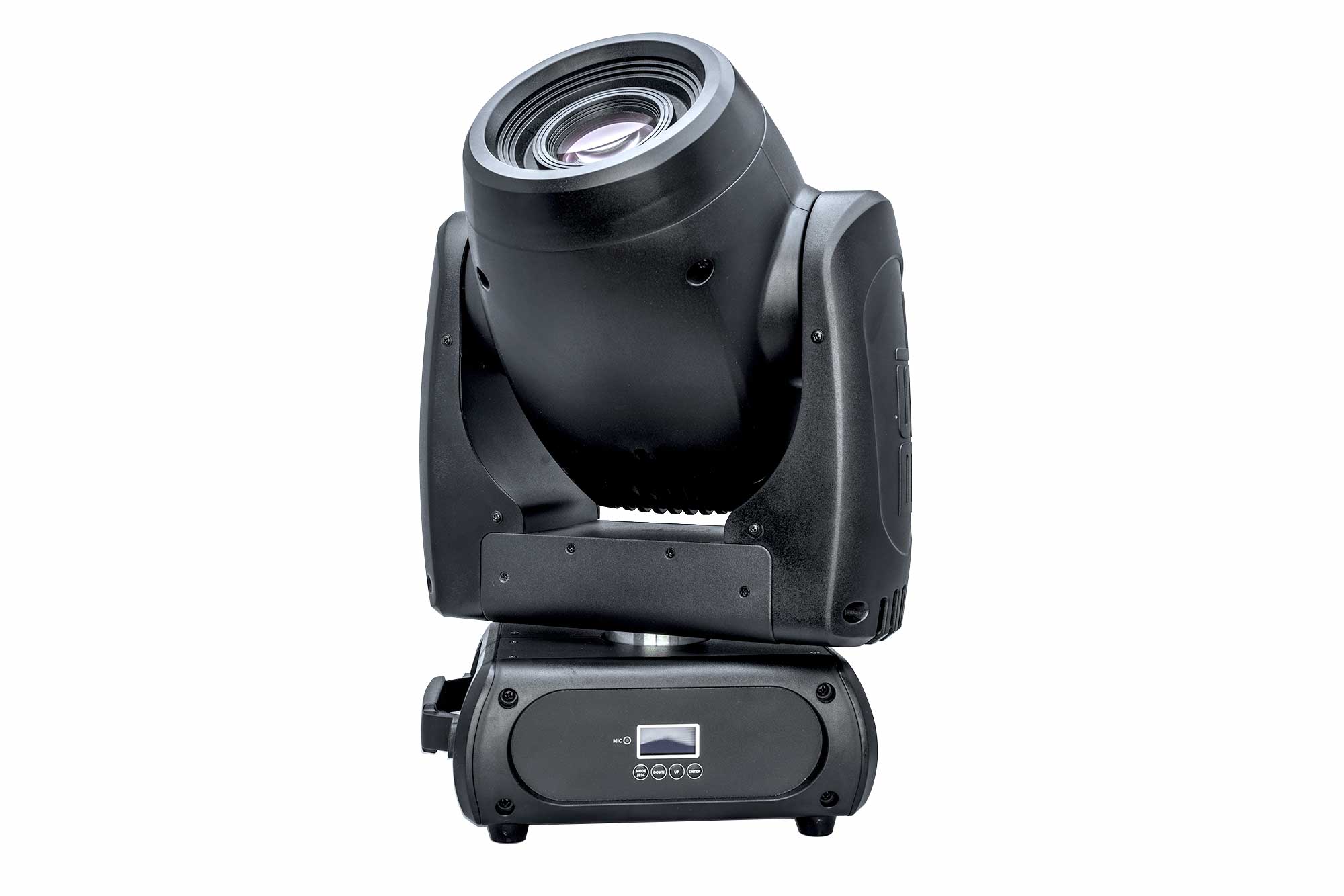

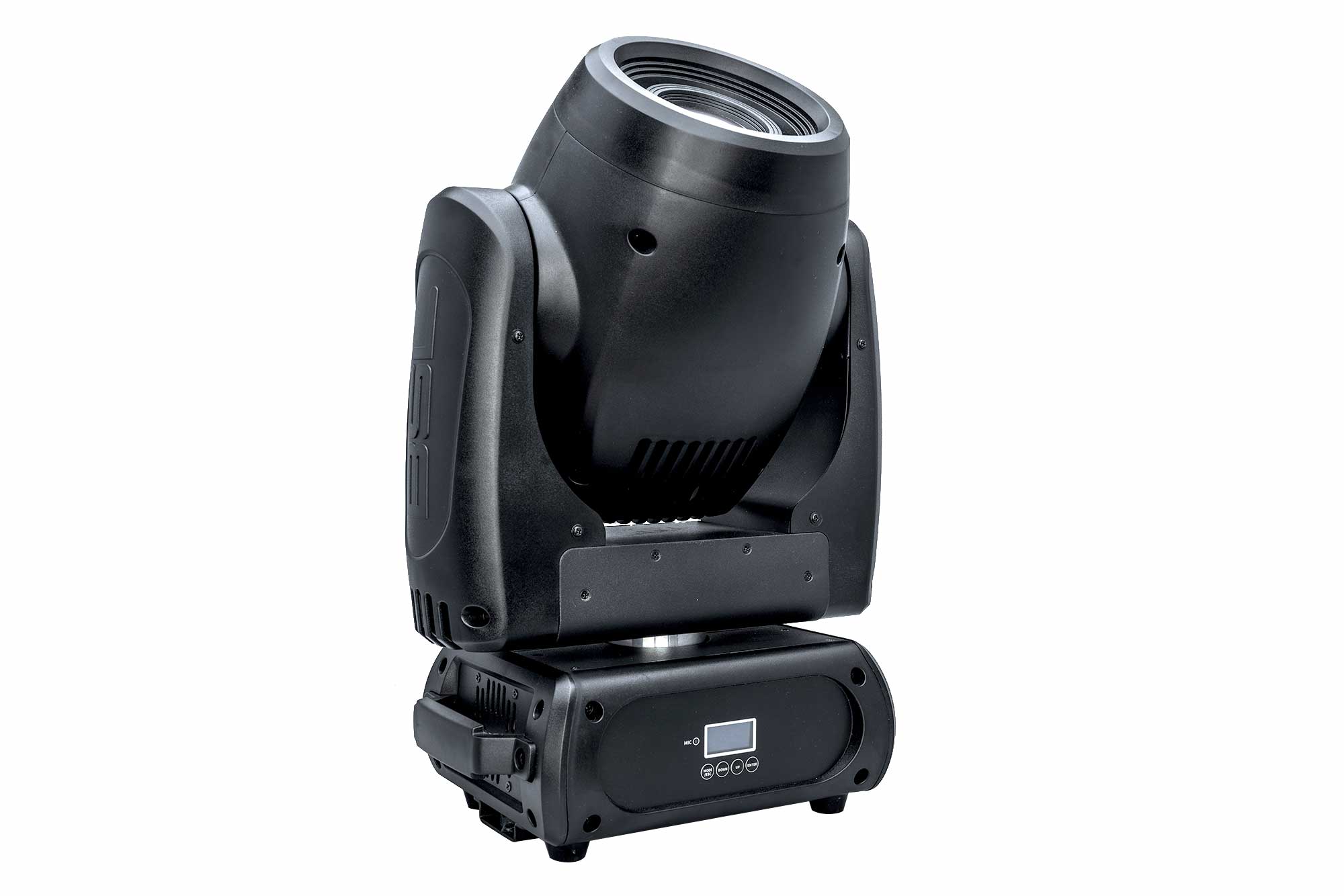

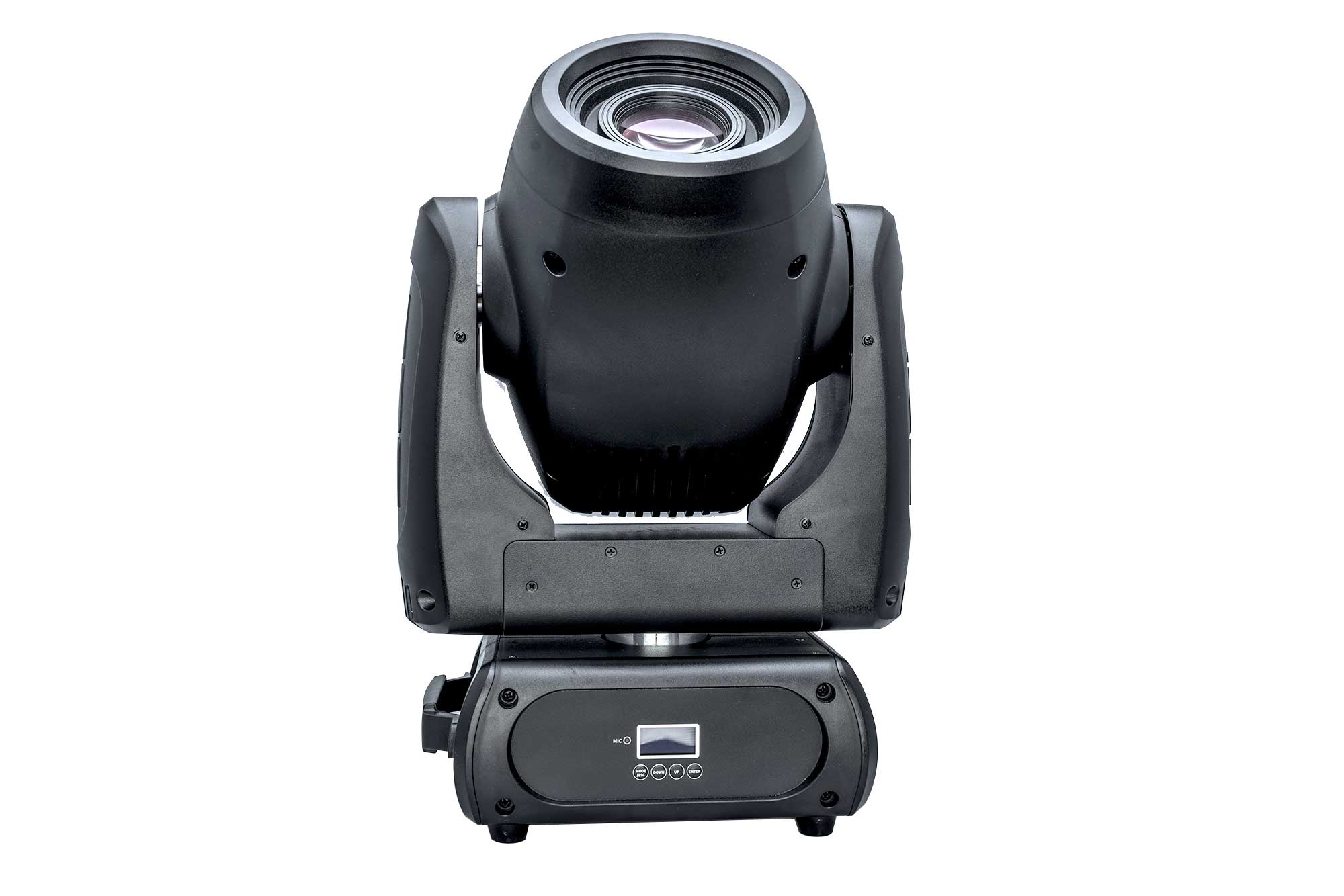

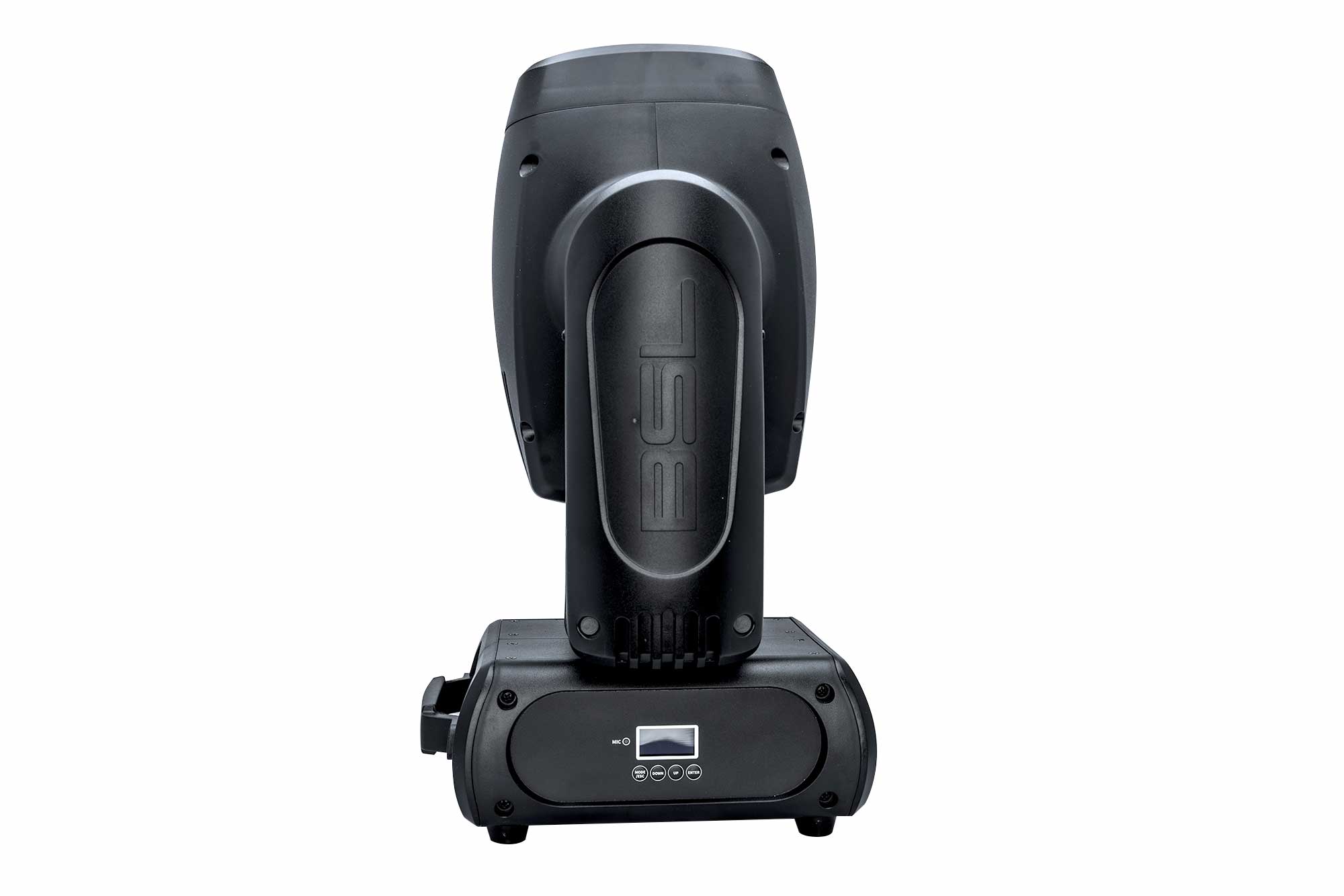

Twist Spot 150LED

Twist Spot 150LED Specifications

Source

  • light source: advanced 150w white led
  • lamp life: 60.000 hours
  • luminous flux: 12800lumen, 23000lux@2.5m
  • control: remote on/off via DMX
  • ballast: switching mode power supply

Optical system

  • beam angle: 6° to 48°

X/Y

  • pan: 360° (3.2 sec) or 540°(3.58 sec)
  • tilt: 265° (2.6 sec)
  • 16-bit resolution
  • auto repositioning

Colors

  • 8+open, indexable and bidirectional rainbow effect
  • color bounce

Gobos

  • outside¢23mm, inside¢18mm
  • 7+ open custom interchangeable position for rotating gobo wheel
  • real indexable and gobo shaking
  • distinctive gobo animation effect

Display

  • 1.8 OLED display with English/Chinese
  • auto lock
  • flip

Features

  • DMX channels: 11/13
  • color wheel: 8+1 colors
  • rotating gobo wheel: 7+1 gobos
  • motorized focus
  • manual 200m from 13° to 18°
  • full range 0-100% dimmer
  • various strobe
  • rotating 3 facets prism
  • RDM function to change DMX address, flip display and reverse x/y, temperature control
  • software upgrade via DMX
  • hibernation when lost DMX for preset time
  • indicate temperature info of base, arm and lamp
  • fan speed auto change according to temperature

Power

  • max power consumption: 180w
  • IEC
  • power supply: electronic auto-ranging
  • input voltage range: 100–240v, 50-60hz

Dimension and weight

  • fixture: 299 x 252 x 431 mm
  • packing: 370 x 267 x 510 mm
  • net weight: 9,2kg
  • gross weight: 12kg

Rigging

  • mounting points: 2 screw locks
  • safety rope
