Magic Zoom 3720

EFFICIENT 20 WATT RGBW OSRAM LEDS

6-66 DEGREES ZOOM COVERAGE

SINGLE LED PIXEL CONTROL

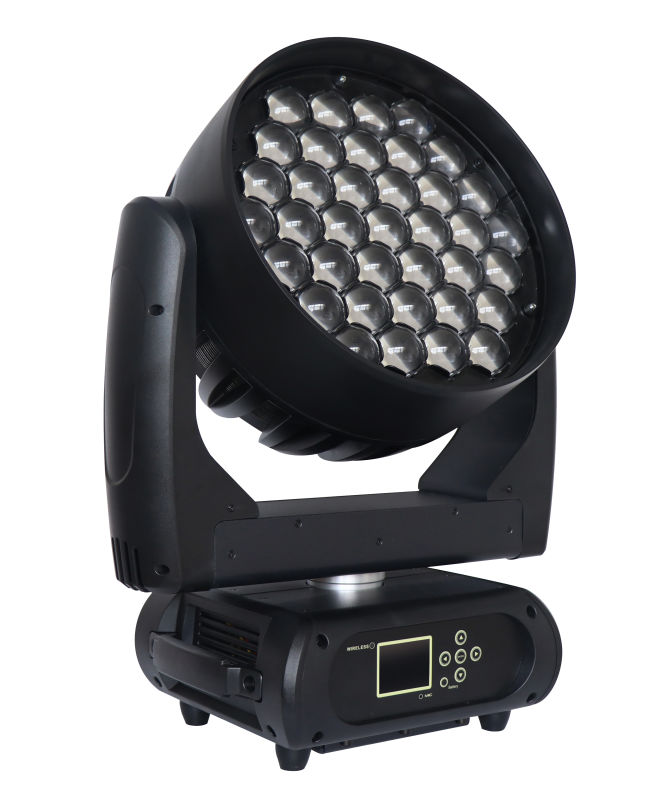

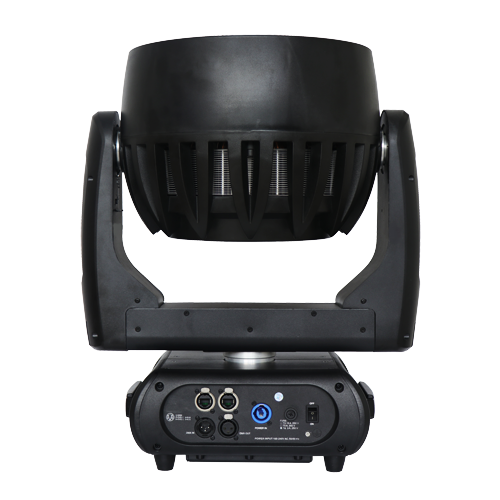

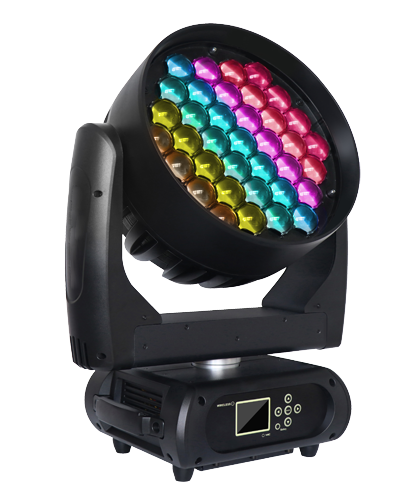

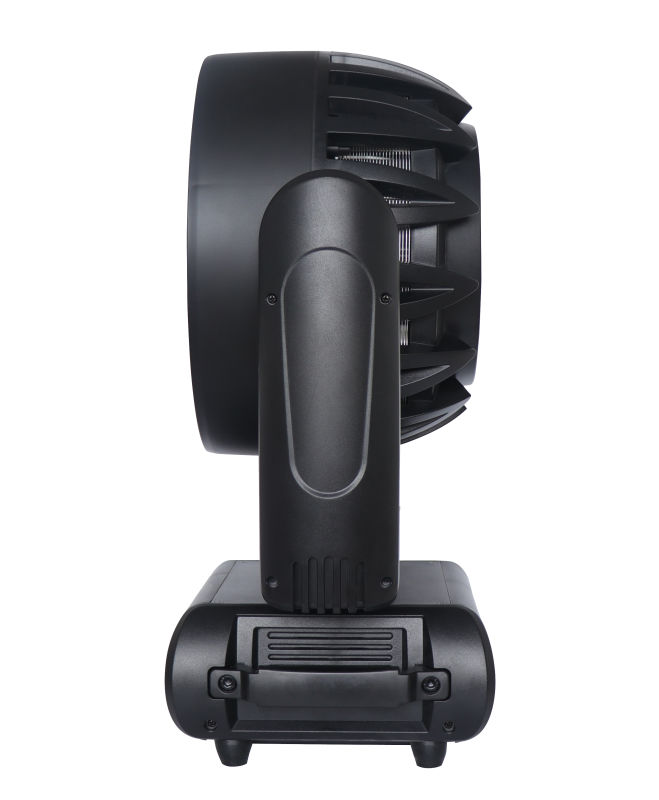

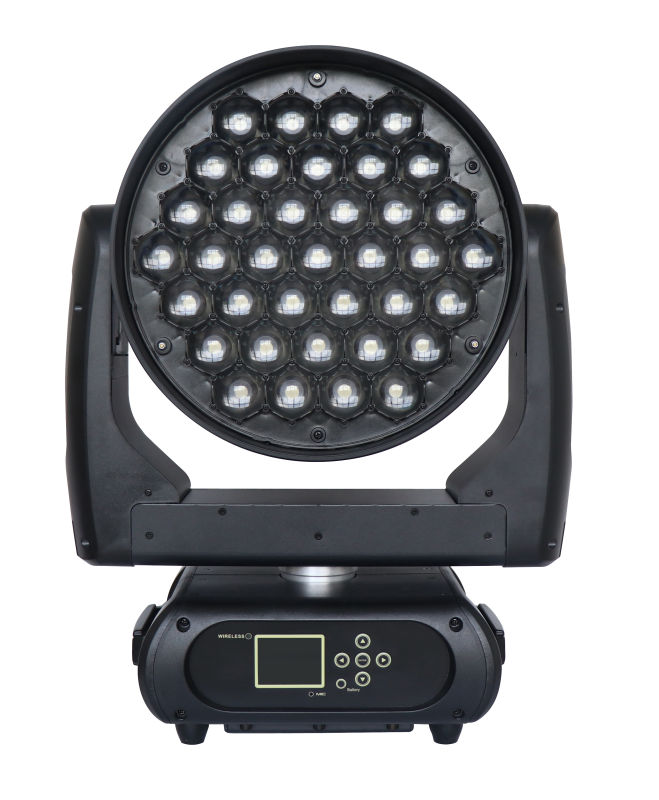

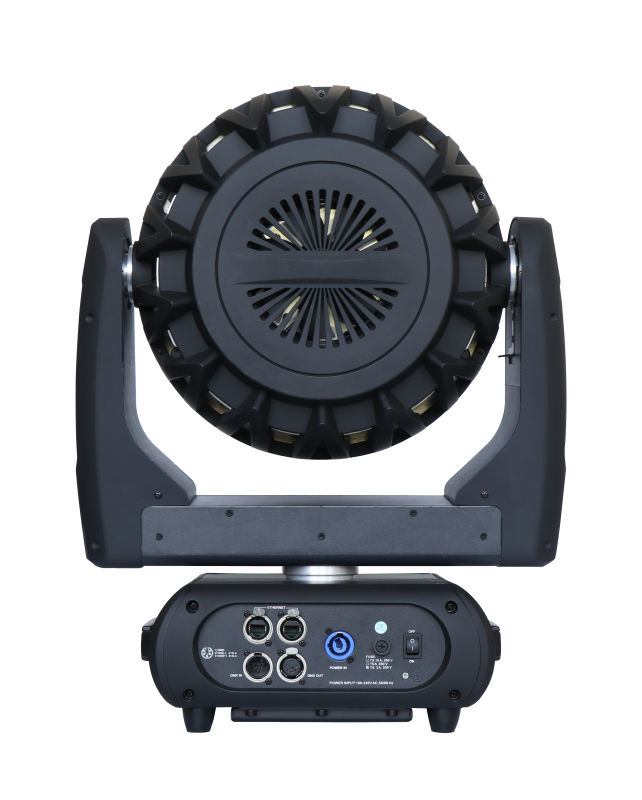

Magic Zoom 3720

The BSL Magic Zoom 3720 is an incredibly quick wash moving head with motorized zoom. Thanks to its special honeycomb lens, it has perfect colour mixing and a zoom ranging from 6 to 66 degrees. On top of that, the moving head is equipped with powerful three phase motors to ensure swift and noiseless motion. RDM is also a feature included in this moving head, which makes for easy changing of the DMX address, DMX mode and reading logbooks containing possible errors. This way you can remotely access the moving head whilst using it.

By making use of high quality components, a long life is guaranteed. For example, 20 Watt RGBW Osram Ostar LEDs are used, which can create an infinite amount of effects through pixel control. Furthermore, these LEDs have an efficiency as never seen before and optics designed especially for these LEDs. The LEDs are cooled by an advanced liquid cooling system which is also protected against overheating. In beam mode it has a very tight and neat bundle of six degrees without any scattered light. This added to the fact that it has powerful and fast motors makes for an incredible effect. In wash mode you can create a bundle with a maximum angle of 66 degrees. This way you can light up large surfaces in the blink of an eye.

Magic Zoom 3720 Specs

Source

  • Light source: 37pcs OSRAM 20W 4in1 LEDs, with PIXEL control
  • Led life: 60.000 hours
  • Luminous Flux: 6420lumen, 40560lux @3m @6°, 6760lux @3m @66°
  • Control: Remote on/off via DMX
  • Ballast: switching mode power supply

Optical System

  • Beam angle: 6° to 66°

X/Y

  • Pan: 630° (2.2 sec) or 540°(2.0 sec), Tilt: 265° (0.85 sec)
  • 16-bit resolution
  • Auto repositioning

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 18/19/20/41/170
  • Super fast, smooth and silent movement
  • 37pcs LED RGBW Pixel Control
  • RGBW four colors mixing to create vivid, saturated and uniform color effects
  • Pre-set color temperature at 2000K-2700K, 3200K, 4200K, 5600K and 8000K
  • Zoom range from 6° to 66°
  • Full range 0-100% dimmer
  • Various strobe
  • RDM function to change DMX address, flip display and reverse X/Y
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info for base, arm and lamp
  • Fan speed auto change according to temperature
  • Heat pipe for cooling

Display

  • 2.4inch LCD display with English/Chinese/French/Spanish menu
  • Auto lock
  • Flip
  • Back-up communicating IC

Power

  • Max Power Consumption: 520W
  • Power Supply: Electronic Auto-Ranging
  • Input Voltage Range: 100–240V, 50-60Hz

Dimensions and Weight

  • Fixture: 250x444x506 MM
  • Packing: 330x510x640 MM
  • Net Weight: 17kg
  • Gross Weight: 19kg
