Magic Zoom 19 High CRI

Magic Zoom 19 High CRI

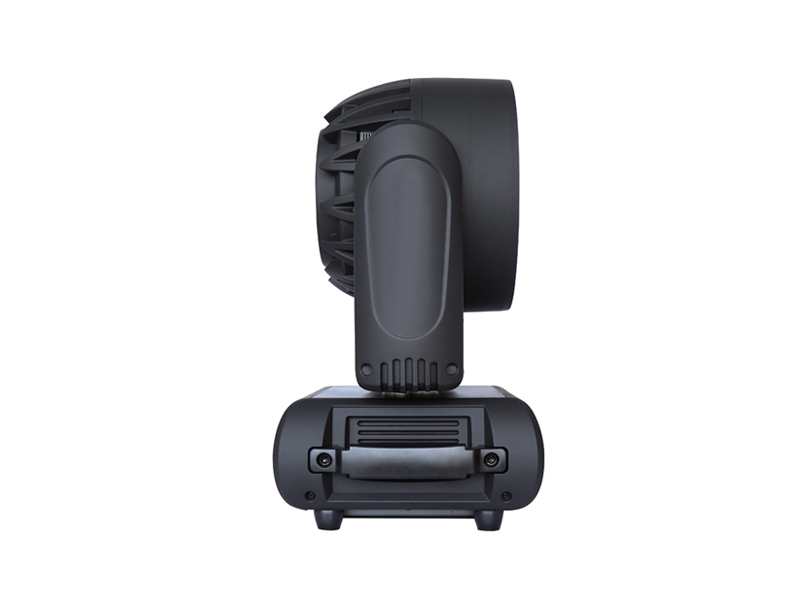

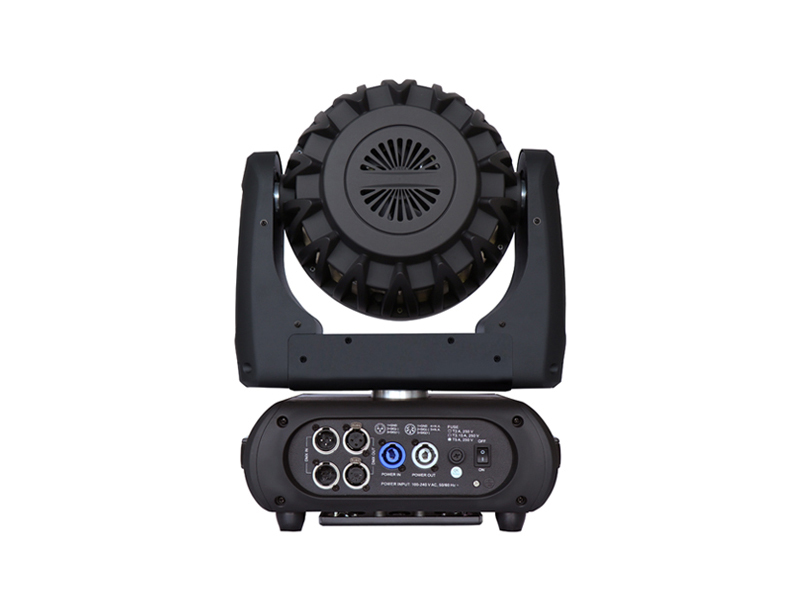

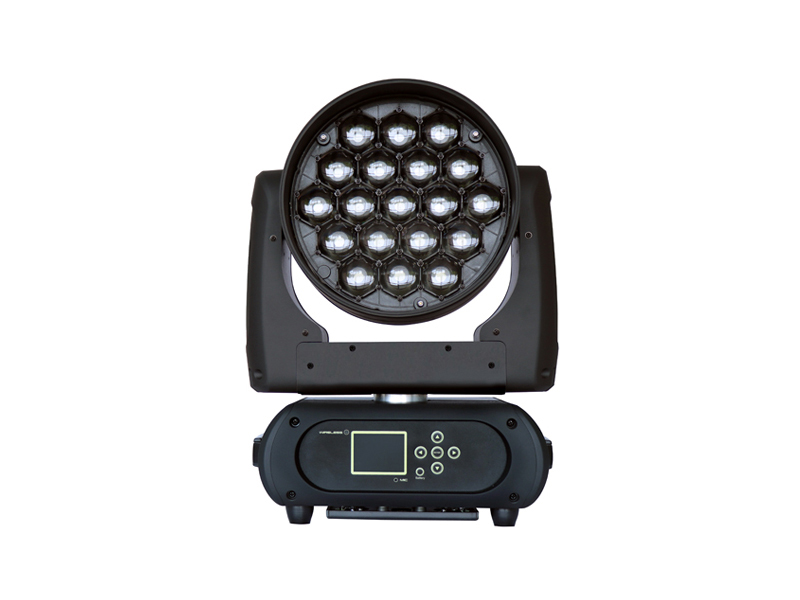

The BSL Magic Zoom 19 High CRI is a very nice wash moving head with motorized zoom. Thanks to its special honeycomb lens, it has perfect colour mixing and a zoom ranging from 6 to 66 degrees. On top of that, the moving head is equipped with powerful three phase motors to ensure swift and noiseless motion. RDM is also featured within this moving head, which makes it easy to change the DMX address, DMX mode and reading logbooks containing possible errors. This way you can remotely access the moving head whilst using it.

By making use of high quality components, a long life is guaranteed. For example, 15 Watt RGBW Osram Ostar LEDs are used, which can create an infinite amount of effects through pixel control. Furthermore, these LEDs have an efficiency as never seen before and optics designed especially for these LEDs. The LEDs are cooled by an advanced liquid cooling system which is also protected against overheating. In beam mode it has a very tight and near bundle of six degrees without any scattered light. In wash mode you can create a bundle with a maximum angle of 66 degrees. This way you can light up large surfaces in the blink of an eye.

Magic Zoom 19 High CRI Specs

Source

  • Light source: 19pcs 20W 6in1 leds, Ring control
  • Led life: 60.000 hours
  • Luminous Flux: 4600lumen, 33260lux@3m@6°, 2942lux@3m@36°
  • Control: Remote on/off via DMX
  • Ballast: switching mode power supply

Optical System

  • Beam angle: 6° to 36°

X/Y

  • Pan: 630° (2.2 sec) or 540°(2.0 sec), Tilt: 265° (0.85 sec)
  • 16-bit resolution
  • Auto repositioning

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 20/33/16/19
  • Super fast, smooth and silent movement
  • Ring control
  • Nice mapping effect with dimming and color fading at the same time
  • GBALC(RGB+Amber+Lime+Cyan)colors mixing to create vivid, saturated and uniform color effect
  • Pre-set color temperature at2000K-2700K, 3200K, 4200K, 5600K and 8000K
  • zoom from: 6° to 36°
  • Full range 0-100% dimmer
  • Various strobe
  • RDM function to change DMX address, display flip, X/Y Reverse and so on
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base
  • Fan speed auto change according to temperature
  • Heat pipe for cooling

Display

  • 2.4inch super nice LCD display with friendly English/Chinese/French/Spanish menu
  • Auto lock
  •  Flip
  • Back-up communicating IC

Power

  • Max power consumption: 390W
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240V, 50-60Hz

Dimensions and Weight

  • Fixture: 343X250X426mm
  • Packing: 510X410X310mm
  • Net Weight: 12kg
  • Gross Weight: 14kg
