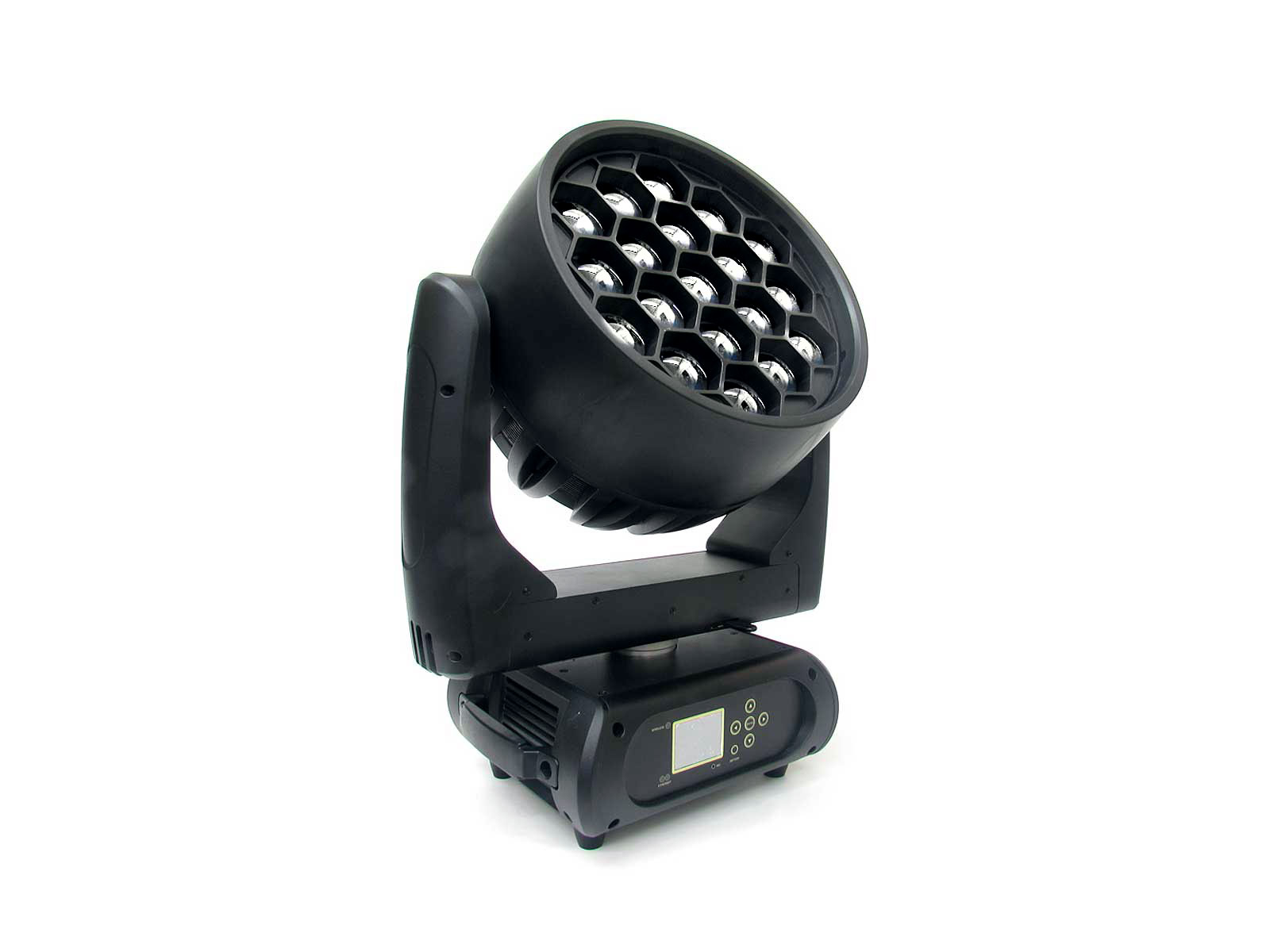

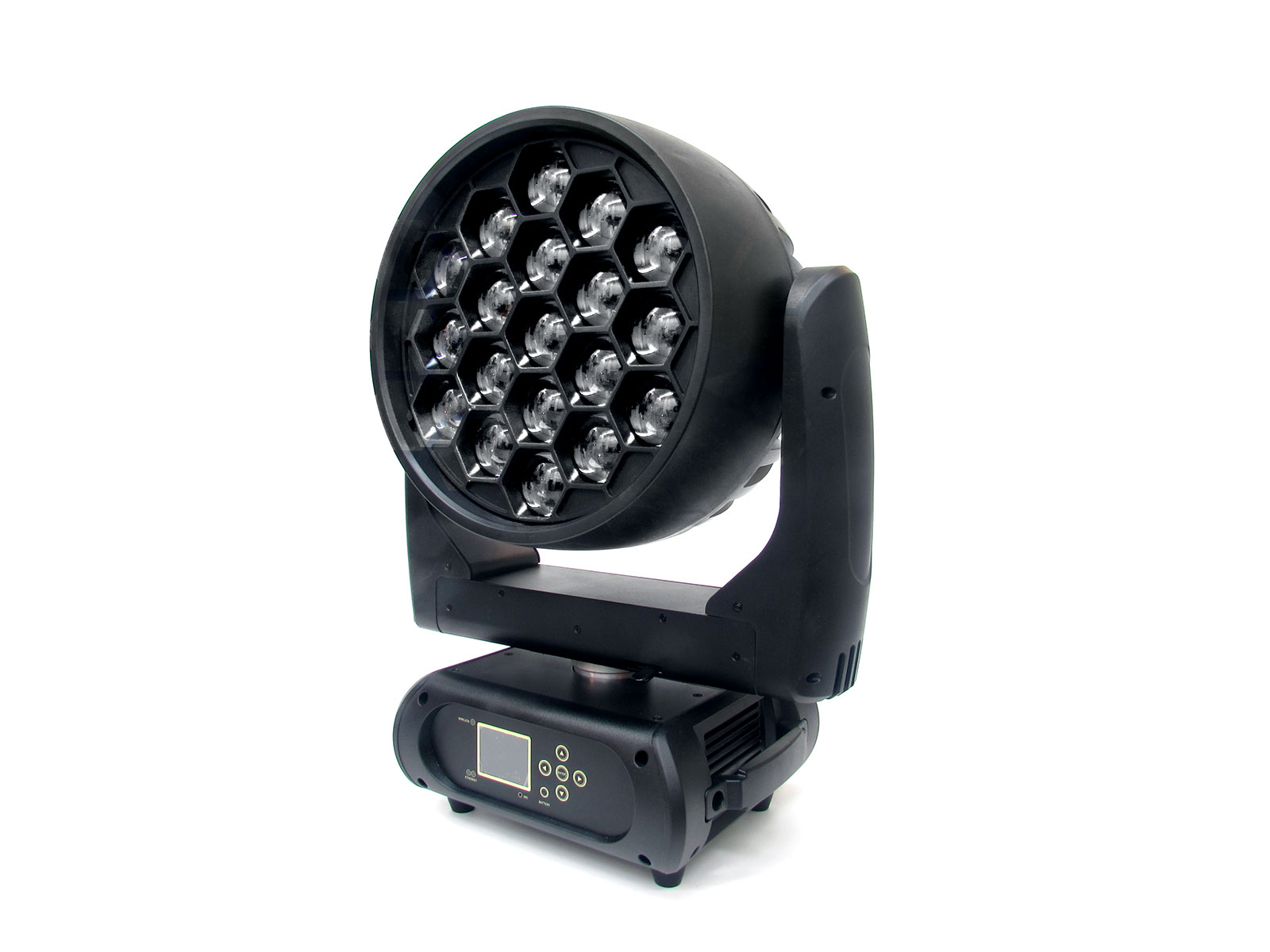

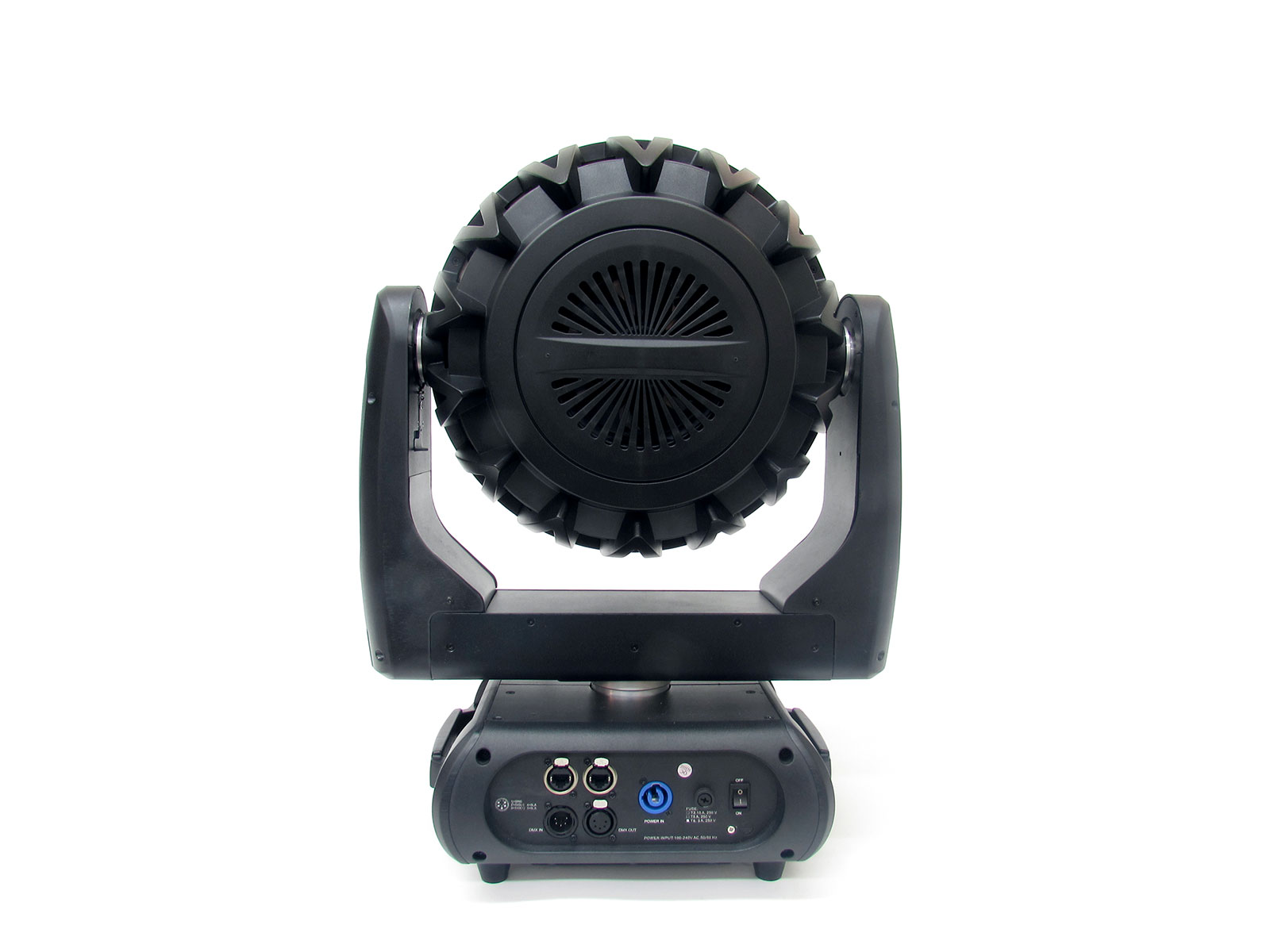

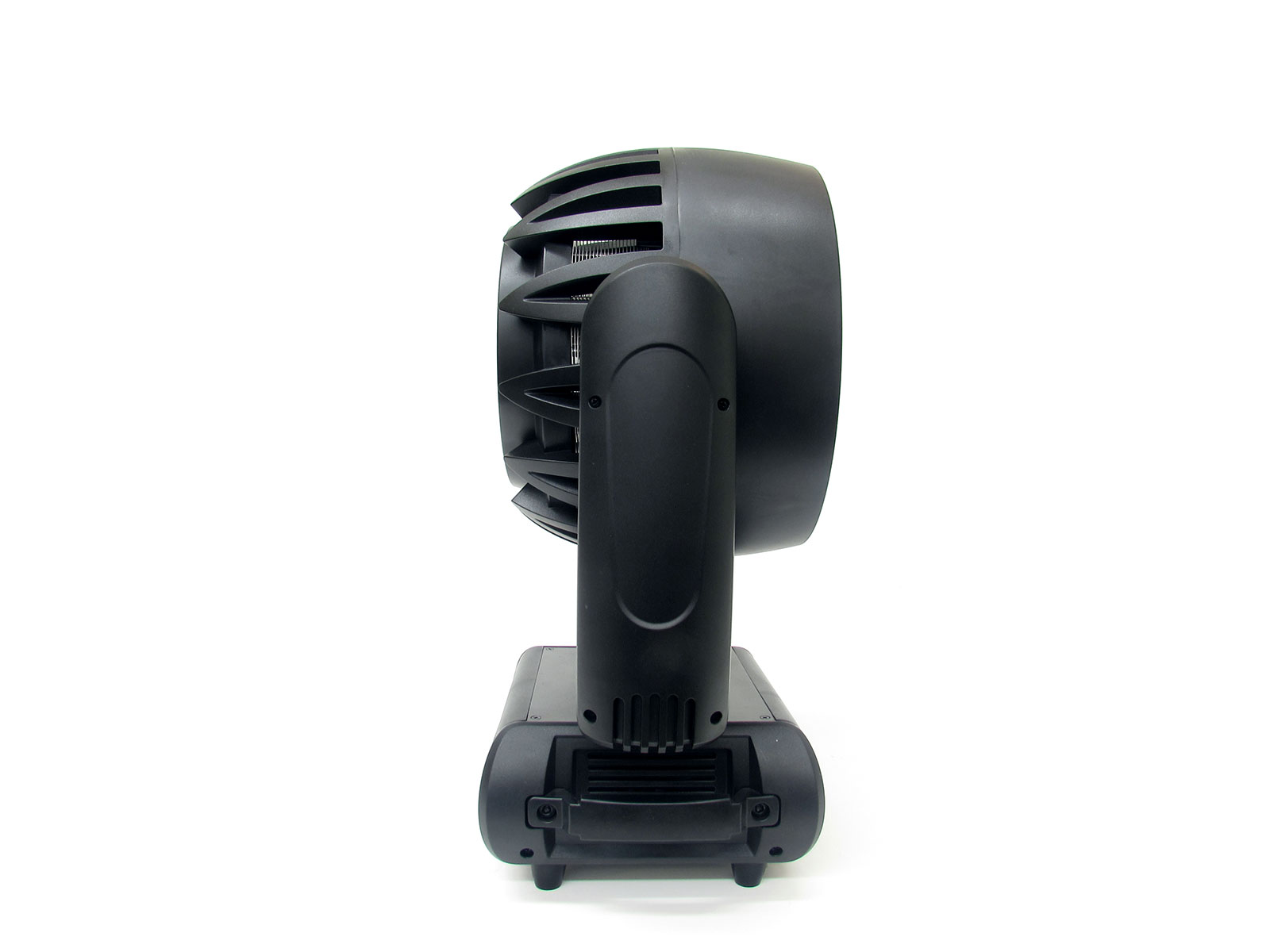

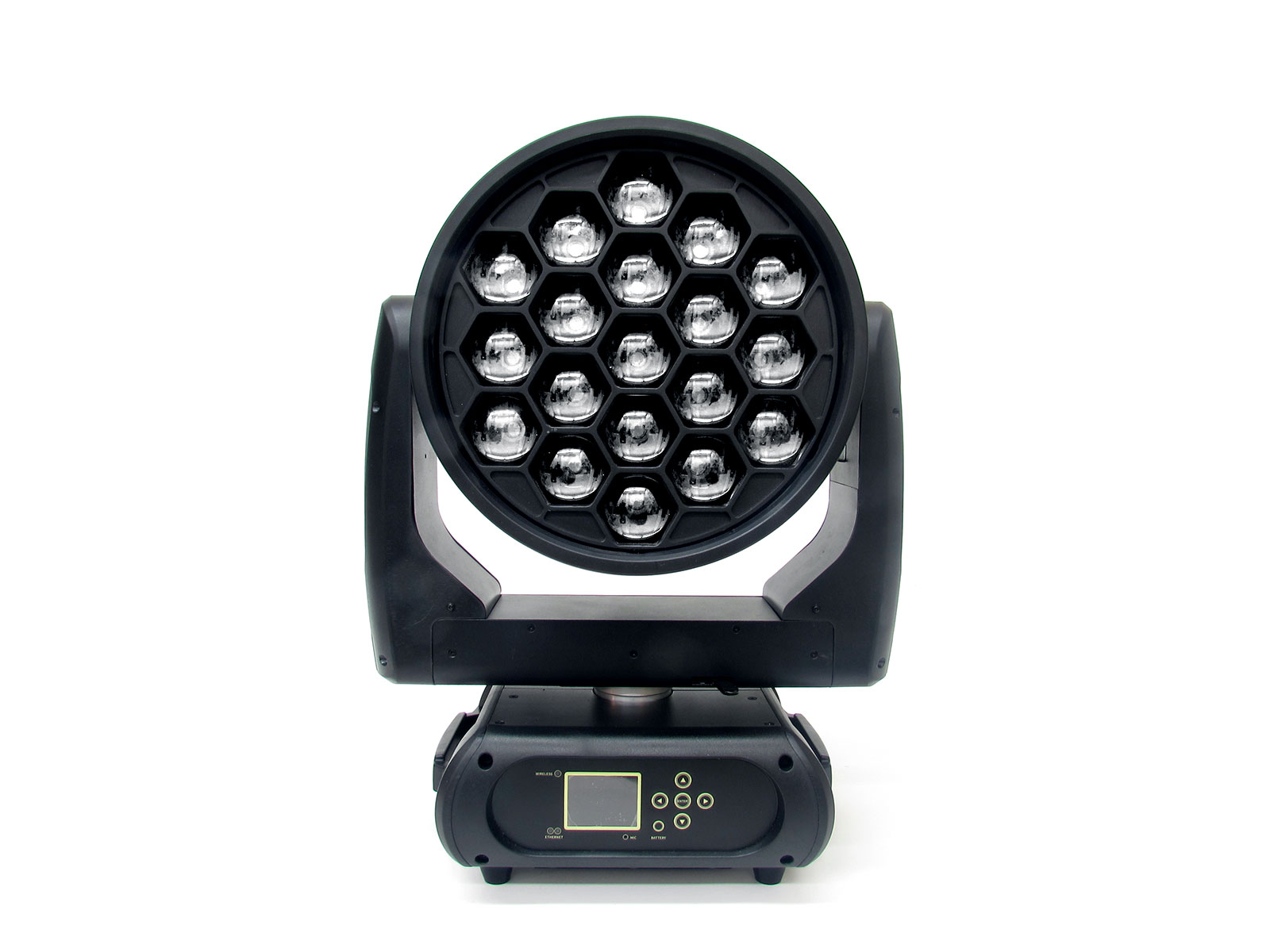

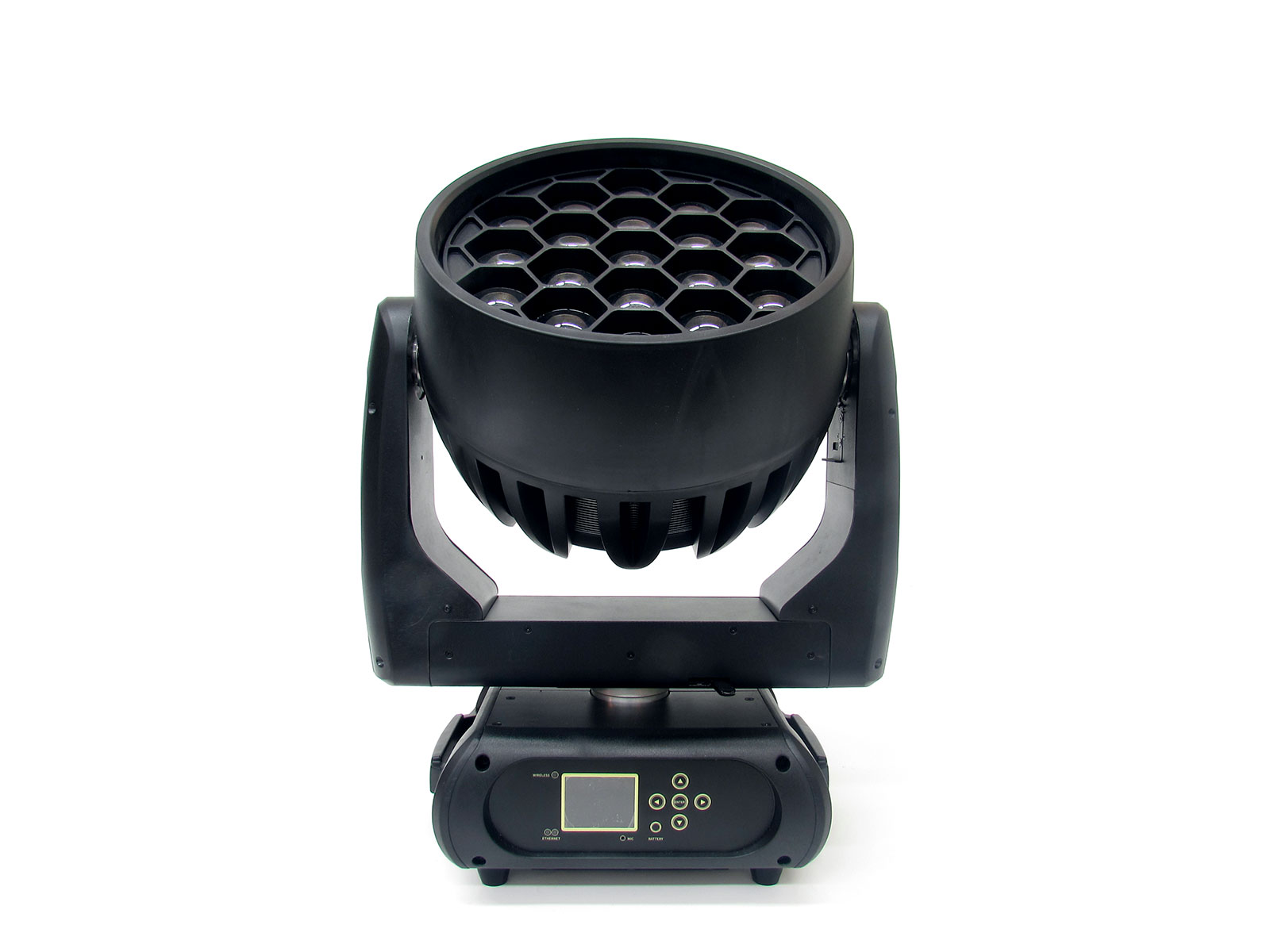

Magic Beam 19

Pixeldimmable wash effect

19pcs 32 watt RGBW Osram LED’s

4-36 DEGREES ZOOM COVERAGE

Magic Beam 19 Specs

Source

  • Light source: 19pcs Osram 32W 4in1 leds with pixel dimming
  • Led life: 60.000 hours
  • Luminous flux: 13000lumen, 90400lux@3m@4°
  • Control: remote on/off via DMX
  • Ballast: switching mode power supply

Optical system

  • Beam angle: 4° to 36°

X/Y

  • Pan: 630° (1.56 sec) or 540° (1.3 sec), tilt: 265° (0.85 sec)
  • 16-bit resolution
  • Auto repositioning
  • 3 Phase motor for fast and quiet movement

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 19/21/22/99
  • Super fast, smooth and silent movement
  • 19pcs led rgbw pixel dimming
  • RGBW four colors mixing to create vivid, saturated and uniform color effect
  • Pre-set color temperature at 2700k, 3200k, 4200k, 5600k and 8000k
  • Zoom angle from 4° to 36°
  • Full range 0-100% dimmer
  • Various strobe
  • RDM function to change DMX address, flip display and reverse X/Y
  • software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base, arm and led
  • Fan speed auto change according to temperature
  • Heat pipe for cooling

Display

  • 2.4 Inch lcd display with english/chinese/french/spanish menu
  • Auto lock
  • Flip
  • Back-up communicating ic

Power

  • Max power consumption: 615W
  • Power supply: electronic auto-ranging
  • Input voltage range: 100–240V, 50-60Hz

Dimension and weight

  • Fixture: 250x442x569 mm
  • Packing: 370x570x670 mm
  • Net weight: 21kg
  • Gross weight: 23kg
