Helios

The Helios is our most powerful LED moving head. He is equipped with a powerful 300 watt LED, which produces an output equivalent to a traditional 1200W head. The BSL Helios has CMT + CTO functions and an enormous zoom range from 6 to 48 degrees. Furthermore the Helios has auto focus, a 3-facet prism, frost and a high speed iris. This hero will never leave you in the dark!

Helios Specs

Source

  • Light source: Advanced 300W white led
  • Lamp life: 60.000 hours
  • Luminous Flux: 16000lumen, 89700lux@2.5m
  • Control: Remote on/off via DMX
  • Ballast: switching mode power supply

Optical System

  • Beam angle: 6° to 48°

X/Y

  • Pan: 630° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec)
  • 16-bit resolution
  • Auto repositioning

Colors

  • Linear CMT+CTO
  • 8+open, interchangeable, indexable and bidirectional rainbow effect
  • Color bounce

Gobos

  • 7+ open interchangeable rotating gobos
  • 7+ open fixed gobos
  • Real indexable and gobo shaking
  • Distinctive gobo animation effect

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 17/19/22/28
  • Linear CMT+CTO
  • Color wheel: 8+1 colors
  • Fixed gobo wheel: 7+1 gobos
  • Rotating gobo wheel: 7+1 gobos
  • Motorized auto focus
  • Full range 0-100% dimmer
  • Various strobe
  • Rotating 3 facets prism
  • Frost
  • Fast speed iris
  • Zoom from 6° to 48°
  • RDM function to change DMX address, flip display and reverse X/Y
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base, arm and lamp
  • Fan speed auto change according to temperature

Display

  • 2.4inch LCD display with English/Chinese/French/Spanish menu
  • Auto lock
  • Flip
  • Back-up communicating IC

Power

  • Max power consumption: 420W
  • Powercon in and out, 3+5 pins DMX
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240V, 50-60Hz

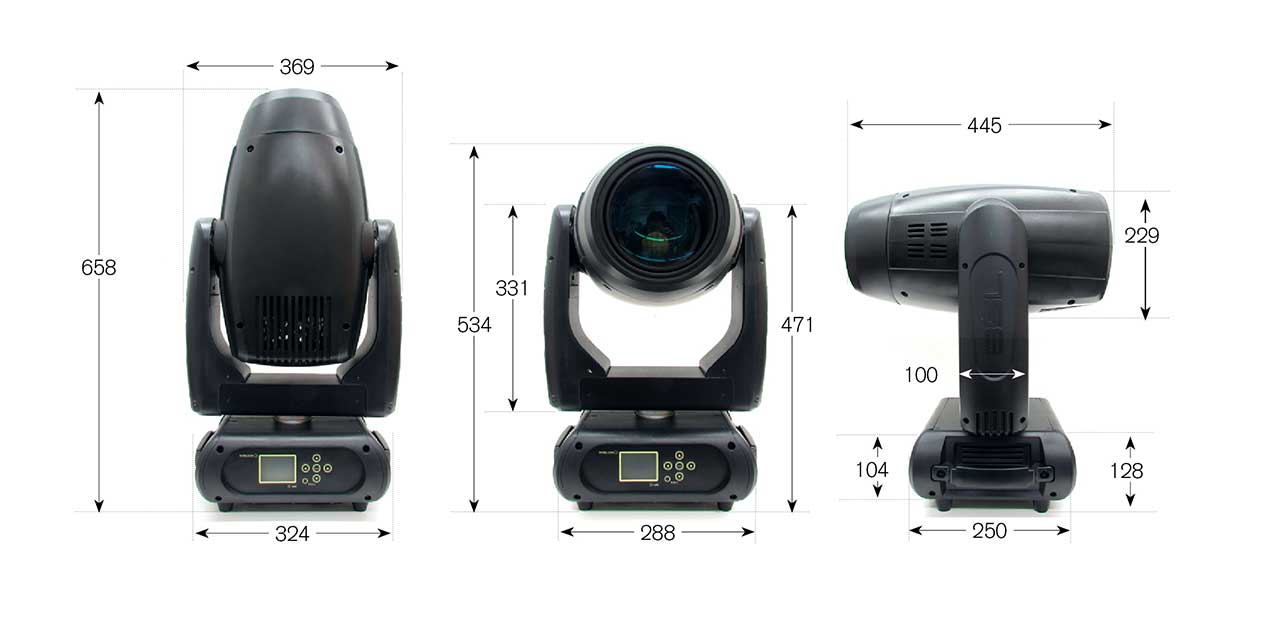

Dimension and Weight

  • Fixture: 369 x 250 x 658 mm
  • Packing: 560 x 430 x 360 mm
  • Net Weight: 18 kg
  • Gross Weight: 20 kg
