Goliath

Specifications

Powerful Hybrid Beam/Spot/Wash

Linear & Circular Prism

2-23 degrees zoom coverage

Goliath

Goliath is the newest 3-in-1 Beam, Spot and Wash movinghead. The Goliath uses the highly efficient Osram Sirius 280W HRI lamp and is very compact and light. The highly efficient glass optic system has been modified to create very sharp cutting edges in beam and spot mode.

The entire zoom ranges from 2 – 23 degrees, combined with the frost filter you can use the Goliath as a wash effect. The zoom range in beam mode is 2 – 10 degrees and in spot mode it ranges from 5,5 to 23 degrees.

Furthermore the Goliath is equipped with 14 static gobo’s in Beam mode and 9 rotating glass gobo’s in Spot mode. It has 13 colors, a 8-way circular prism and a very nice 6-way linear prism.

Goliath Specs

Source

  • Light source: Osram Sirius HRI 280W discharge lamp
  • Led life: 2.000 hours
  • Luminous Flux: 12000 lumen, 325000lux@10m
  • Control: Remote on/off via DMX
  • Ballast: switching mode power supply
  • Beam angle: 2°-10° beam, 5.5°-23° spot

X/Y

  • Pan: 630° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec)
  • 16-bit resolution
  • Auto repositioning

Colors

  • 13+open, interchangeable, indexable and bidirectional rainbow effect
  • New color bounce effect

Gobos

  • Rotating gobo wheel: 9 glass + open
  • Static gobo wheel: 14+open
  • Real indexable and gobo shaking
  • Distinctive gobo animation effect

Rigging

  • Mounting points: 4 ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Safety rope

Features

  • DMX channels: 14/16/20/24
  • Color wheel: 13+1 colors
  • Rotating gobo wheel: 9+1 gobos
  • Static gobo wheel: 14+open
  • Zoom: 2°-10° beam, 5.5°-23°spot
  • Motorized focus Full range 0-100% dimmer
  • Various strobe
  • Frost 6-Linear + facets prism
  • RDM function to change DMX address, flip display and Reverse X/Y
  • RDM read voltage, current and power consumption of lamp
  • Software upgrade via DMX
  • Hibernation when lost DMX for preset time
  • Indicate temperature info of base, arm and lamp
  • Fan speed auto change according to temperature

Display

  • 2.4inch LCD display with English/Chinese/French/Spanish menu
  • Auto lock
  • Flip
  • Back-up communicating IC

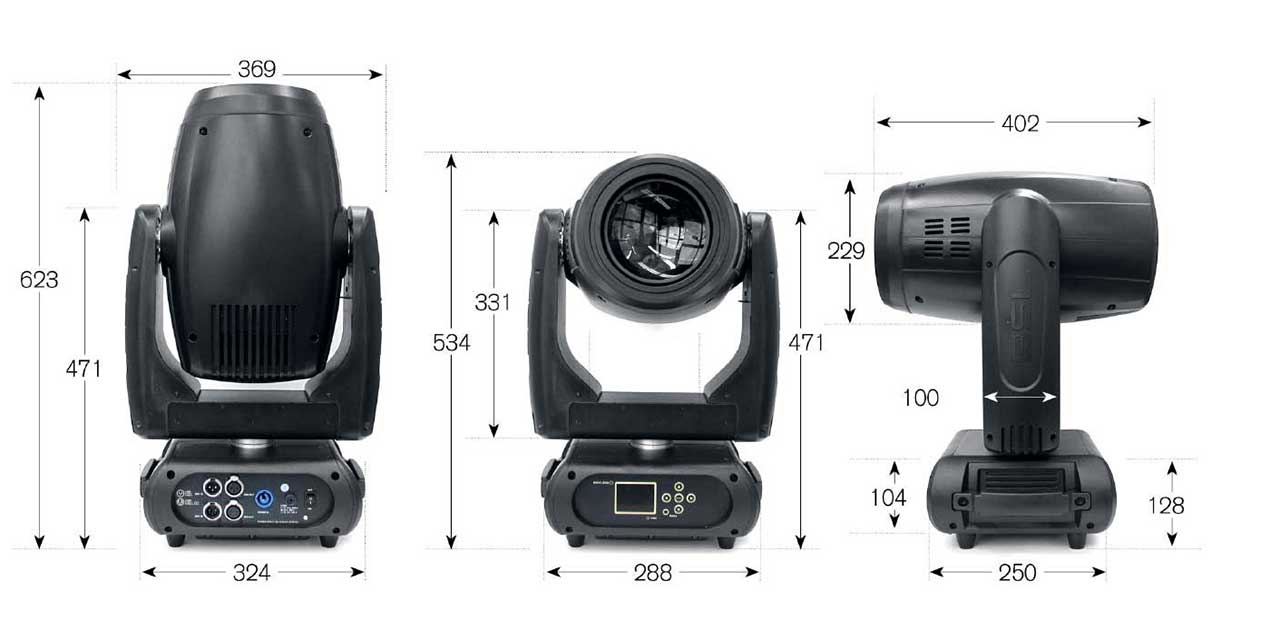

Dimensions and Weight

  • Dimensions (WxHxD): 355x619x235 mm
  • Weight: 18 kg

Power

  • Max power consumption: 430W
  • Power supply: electronic auto-ranging
  • Input voltage range: 100–240V, 50-60Hz
